Two-pole SMD series
2R-5.5×6-10KA Series description：

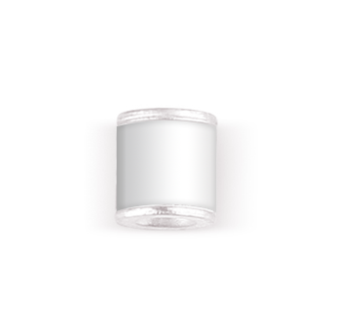

The two-pole SMD 2R 5.5×6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and miniaturized port protection. It has small size, low capacitance and current flow capacity. Strong characteristics, volume: 5.5×6.0mm, voltage range: 75-470V 8/20μs waveform can withstand 10kA surge energy.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
2R-075 |
75±20% |
500 |
600 |
1 |
1 |
10 |
12 |
|
2R-090 |
90±20% |
500 |
600 |
1 |
1 |
10 |
12 |
|
2R-150 |
150±20% |
500 |
600 |
1 |
1 |
10 |
12 |
|
2R-230 |
230±20% |
600 |
700 |
1 |
1 |
10 |
12 |
|
2R-250 |
250±20% |
600 |
700 |
1 |
1 |
10 |
12 |
|
2R-300 |
300±20% |
750 |
850 |
1 |
1 |
10 |
12 |
|
2R-350 |
350±20% |
800 |
900 |
1 |
1 |
10 |
12 |
|
2R-420 |
420±20% |
850 |
950 |
1 |
1 |
10 |
12 |
|
2R-470 |
470±20% |
900 |
1000 |
1 |
1 |
10 |
12 |
