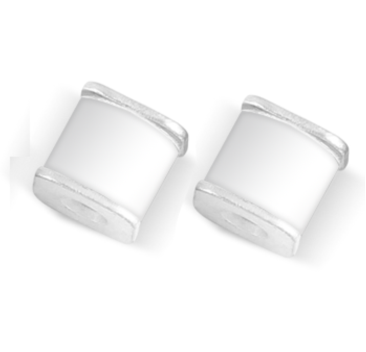

The two-pole SMD series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection of miniaturized ports. This series of products has small size, low capacitance, and current flow capacity. Strong features, volume: 6.2×6.2×6.0mm. Voltage range: 75-350V, can withstand 10kA surge energy under 8/20μs waveform.
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
2R-075 |
75±20% |
500 |
600 |
1 |
1.5 |
10 |
15 |
2R-090 |
90±20% |
500 |
600 |
1 |
1.5 |
10 |
15 |
2R-150 |
150±20% |
500 |
600 |
1 |
1.5 |
10 |
15 |
2R-230 |
230±20% |
600 |
700 |
1 |
1.5 |
10 |
15 |
2R-250 |
250±20% |
600 |
700 |
1 |
1.5 |
10 |
15 |
2R-300 |
300±20% |
750 |
850 |
1 |
1.5 |
10 |
15 |
2R-350 |
350±20% |
800 |
900 |
1 |
1.5 |
10 |
15 |
