Two-pole SMD series
2R-5×4.2±20% Series description：

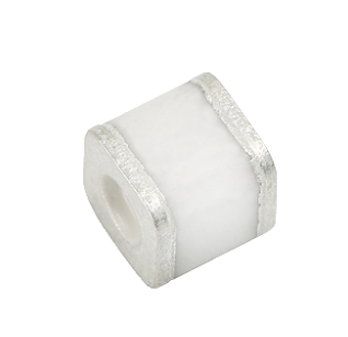

The two-pole SMD 5×4.2 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance, and strong current capacity. Volume: 5.0×5.0×4.2mm, voltage range: 75-800V, 8/20μs waveform can withstand 5kA surge energy.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
2R-1000 |
1000±20% |
1600 |
1800 |
1 |
1 |
5 |
10 |
|
2R-1200 |
1200±20% |
1800 |
2000 |
1 |
1 |
5 |
10 |
|
2R-1400 |
14000±20% |
2200 |
2400 |
1 |
1 |
5 |
10 |
|
2R-1500 |
1500±20% |
2300 |
2500 |
1 |
1 |
5 |
10 |
|
2R-1600 |
1600±20% |
2400 |
2600 |
1 |
1 |
5 |
10 |
|
2R-2000 |
2000±20% |
2800 |
3000 |
1 |
1 |
3 |
5 |
|
2R-2500 |
2500±20% |
3300 |
3500 |
1 |
1 |
3 |
5 |
|
2R-2700 |
2700±20% |
3400 |
3600 |
1 |
1 |
3 |
5 |
|
2R-3000 |
3000±20% |
3700 |
3900 |
1 |
1 |
3 |
5 |
|
2R-3500 |
35000±20% |
4300 |
4500 |
1 |
1 |
3 |
5 |
|
2R-3600 |
3600±20% |
4400 |
4600 |
1 |
1 |
3 |
5 |
|
2R-4000 |
4000±20% |
5000 |
5500 |
1 |
1 |
3 |
5 |
|
2R-4500 |
4500±20% |
5500 |
6000 |
1 |
1 |
2 |
5 |
|
2R-5000 |
5000±20% |
6000 |
6500 |
1 |
1 |
2 |
5 |
