2R-6.2×4.2

2R-6.2×4.2 Series description:

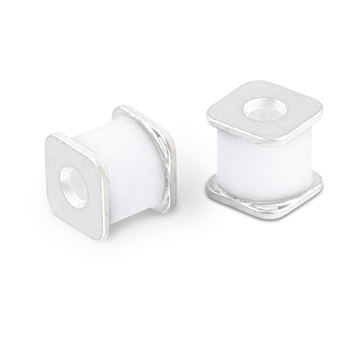

The two-pole SMD 2R 6.2×4.2 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance value and strong current flow capacity. Volume: 6.2×6.2×4.2mm, voltage range: 75-800V,8/20μs waveform can withstand 5kA surge energy.

Part Number

DC Spark-over Voltage(VBR)
@100V/s

Impulse Spark-over Voltage

Insulation Resistance

Capacitance  @1MHz

Impulse Discharge Current @8/20μS

100V/μS
 Max(V)

1KV/μS Max(V)

Min(GΩ)

Max(pF)

Nominal ±5 times (KA)

Max 1 time (KA)

2R-075

75±20%

500

600

1

1

5

10

2R-090

90±20%

500

600

1

1

5

10

2R-150

150±20%

500

600

1

1

5

10

2R-230

230±20%

600

700

1

1

5

10

2R-250

250±20%

600

700

1

1

5

10

2R-300

300±20%

700

800

1

1

5

10

2R-350

350±20%

750

850

1

1

5

10

2R-400

350±20%

800

900

1

1

5

10

2R-470

350±20%

800

900

1

1

5

10

2R-600

600±20%

900

1000

1

1

5

10

2R-800

800±20%

1300

400

1

1

5

10

*Tips:Please refer to the specification and the physical sample of the application.
