Two-pole SMD series
2R-5.5×6-5KA Series description：

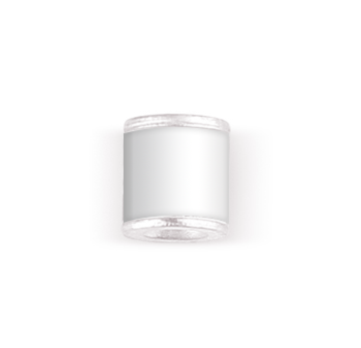

The two-pole SMD 2R 5.5×6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance, and strong flow capacity. The volume is 8.0×6.0mm. Voltage range: 75-800V, can withstand 20kA surge energy impact under 8/20μs waveform.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
2R-075 |
75±20% |
500 |
600 |
1 |
1 |
5 |
10 |
|
2R-090 |
90±20% |
500 |
600 |
1 |
1 |
5 |
10 |
|
2R-150 |
150±20% |
500 |
600 |
1 |
1 |
5 |
10 |
|
2R-230 |
230±20% |
600 |
700 |
1 |
1 |
5 |
10 |
|
2R-250 |
250±20% |
600 |
700 |
1 |
1 |
5 |
10 |
|
2R-300 |
300±20% |
750 |
850 |
1 |
1 |
5 |
10 |
|
2R-350 |
350±20% |
800 |
900 |
1 |
1 |
5 |
10 |
|
2R-400 |
400±20% |
850 |
950 |
1 |
1 |
5 |
10 |
|
2R-420 |
420±20% |
850 |
950 |
1 |
1 |
5 |
10 |
|
2R-470 |
470±20% |
900 |
1000 |
1 |
1 |
5 |
10 |
|
2R-600 |
600±20% |
1000 |
1200 |
1 |
1 |
5 |
10 |
|
2R-800 |
800±20% |
1200 |
1400 |
1 |
1 |
5 |
10 |
