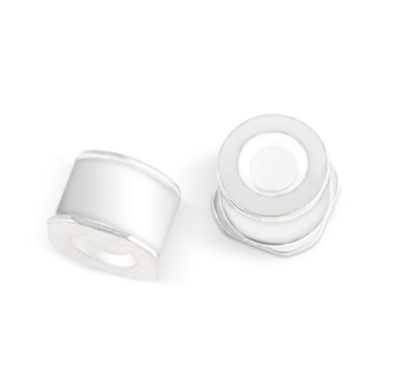

Two-pole SMD series
2R-8.3×6-20KA Series description：
The two-pole SMD series, suitable for Coaxial, xDSL port, Internet port protection and surge protection of miniaturized ports. This series of products have the characteristics of small size, low capacitance, and strong flow capacity. The minimum size is 8.0×6.0mm. The product can withstand 0.5kA～20kA surge energy of 8/20μs waveform.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
2R-075 |
75±20% |
500 |
600 |
1 |
1.5 |
20 |
25 |
|
2R-090 |
90±20% |
500 |
600 |
1 |
1.5 |
20 |
25 |
|
2R-150 |
150±20% |
500 |
600 |
1 |
1.5 |
20 |
25 |
|
2R-230 |
230±20% |
600 |
700 |
1 |
1.5 |
20 |
25 |
|
2R-250 |
250±20% |
600 |
700 |
1 |
1.5 |
20 |
25 |
|
2R-300 |
300±20% |
750 |
850 |
1 |
1.5 |
20 |
25 |
|
2R-350 |
350±20% |
800 |
900 |
1 |
1.5 |
20 |
25 |
|
2R-400 |
400±20% |
850 |
950 |
1 |
1.5 |
20 |
25 |
|
2R-420 |
420±20% |
850 |
950 |
1 |
1.5 |
20 |
25 |
|
2R-470 |
470±20% |
900 |
1000 |
1 |
1.5 |
20 |
25 |
|
2R-600 |
600±20% |
1000 |
1200 |
1 |
1.5 |
20 |
25 |
|
2R-800 |
800±20% |
1300 |
1400 |
1 |
1.5 |
20 |
25 |
|
2R-1000 |
1000±20% |
1500 |
1600 |
1 |
1.5 |
20 |
25 |
