Three-pole plug-in series
8×10-10KA(F) Series description：

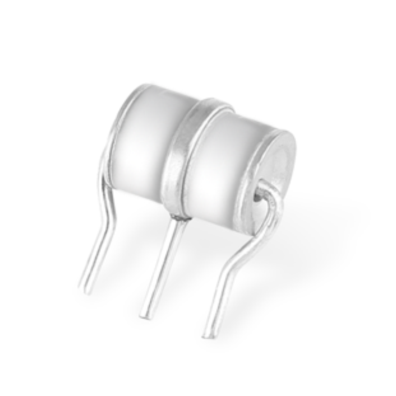

The three-pole plug-in 3R 8×10 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for AC power port and communication interface protection. Volume: 8.0×10mm, voltage range: 75～800V, 8/20μs waveform can withstand 10kA Surge energy.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
3R-075-F |
75±20% |
500 |
600 |
1 |
1.5 |
10 |
20 |
|
3R-090-F |
90±20% |
500 |
600 |
1 |
1.5 |
10 |
20 |
|
3R-150-F |
150±20% |
500 |
600 |
1 |
1.5 |
10 |
20 |
|
3R-200-F |
200±20% |
600 |
700 |
1 |
1.5 |
10 |
20 |
|
3R-230-F |
230±20% |
600 |
700 |
1 |
1.5 |
10 |
20 |
|
3R-250-F |
250±20% |
600 |
700 |
1 |
1.5 |
10 |
20 |
|
3R-350-F |
350±20% |
800 |
900 |
1 |
1.5 |
10 |
20 |
|
3R-400-F |
400±20% |
850 |
950 |
1 |
1.5 |
10 |
20 |
|
3R-420-F |
420±20% |
850 |
950 |
1 |
1.5 |
10 |
20 |
|
3R-470-F |
470±20% |
900 |
1000 |
1 |
1.5 |
10 |
20 |
|
3R-600-F |
600±20% |
1100 |
1200 |
1 |
1.5 |
10 |
20 |
|
3R-800-F |
800±20% |
1400 |
1500 |
1 |
1.5 |
10 |
20 |
