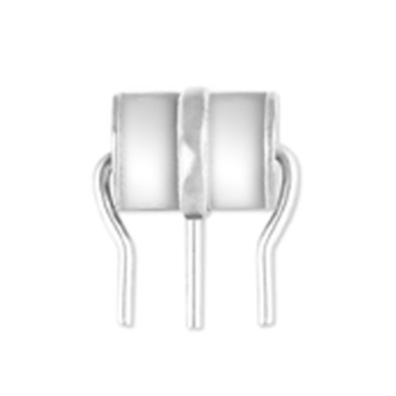

Three-pole plug-in series
6×8-5KA(B) Series description：
The three-pole plug-in 3R 6×8 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for AC power port and communication interface protection. Volume: 6.0×8.5mm, voltage range: 70～800V, 8/20μs waveform can withstand 5kA Surge energy.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
3R-070 |
70±20% |
500 |
600 |
1 |
1.5 |
5 |
10 |
|
3R-075 |
75±20% |
500 |
600 |
1 |
1.5 |
5 |
10 |
|
3R-090 |
90±20% |
750 |
850 |
1 |
1.5 |
5 |
10 |
|
3R-150 |
150±20% |
750 |
850 |
1 |
1.5 |
5 |
10 |
|
3R-230 |
230±20% |
600 |
700 |
1 |
1.5 |
5 |
10 |
|
3R-250 |
250±20% |
600 |
700 |
1 |
1.5 |
5 |
10 |
|
3R-300 |
300±20% |
700 |
900 |
1 |
1.5 |
5 |
10 |
|
3R-350 |
350±20% |
700 |
900 |
1 |
1.5 |
5 |
10 |
|
3R-400 |
400±20% |
800 |
1000 |
1 |
1.5 |
5 |
10 |
|
3R-470 |
470±20% |
900 |
1100 |
1 |
1.5 |
5 |
10 |
|
3R-600 |
600±20% |
1100 |
1300 |
1 |
1.5 |
5 |
10 |
|
3R-800 |
800±20% |
1300 |
1500 |
1 |
1.5 |
5 |
10 |
