Three-pole plug-in series
6×8-10KA（B） Series description：

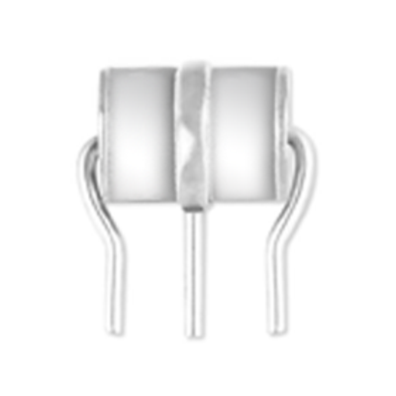

The three-pole plug-in 3R 6×8 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for the protection of AC power ports and communication interfaces. Volume: 6.0×8.5mm, voltage range: 70～600V, 8/20μs waveform can withstand 10kA Surge energy.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
3R-070-B |
70±20% |
500 |
600 |
1 |
1.5 |
10 |
15 |
|
3R-075-B |
75±20% |
500 |
600 |
1 |
1.5 |
10 |
15 |
|
3R-090-B |
90±20% |
750 |
850 |
1 |
1.5 |
10 |
15 |
|
3R-150-B |
150±20% |
750 |
850 |
1 |
1.5 |
10 |
15 |
|
3R-230-B |
230±20% |
600 |
700 |
1 |
1.5 |
10 |
15 |
|
3R-250-B |
250±20% |
600 |
700 |
1 |
1.5 |
10 |
15 |
|
3R-300-B |
300±20% |
700 |
900 |
1 |
1.5 |
10 |
15 |
|
3R-350-B |
350±20% |
700 |
900 |
1 |
1.5 |
10 |
15 |
|
3R-400-B |
400±20% |
800 |
1000 |
1 |
1.5 |
10 |
15 |
|
3R-470-B |
470±20% |
900 |
1100 |
1 |
1.5 |
10 |
15 |
|
3R-600-B |
600±20% |
1100 |
1300 |
1 |
1.5 |
10 |
15 |
