Two-pole plug-in series
2R-8×6-20KA Series description：

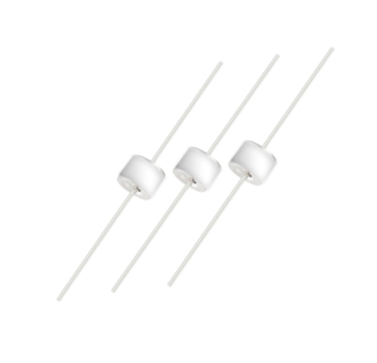

The two-pole plug-in 2R 8×6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for AC power port protection. Volume: 8.0×6.0mm, voltage range: 75～800V, 8/20μs waveform can withstand 20kA surge energy
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
2R-075 |
75±20% |
500 |
600 |
1 |
1.5 |
20 |
25 |
|
2R-090 |
90±20% |
500 |
600 |
1 |
1.5 |
20 |
25 |
|
2R-150 |
150±20% |
500 |
600 |
1 |
1.5 |
20 |
25 |
|
2R-230 |
230±20% |
600 |
700 |
1 |
1.5 |
20 |
25 |
|
2R-250 |
250±20% |
600 |
700 |
1 |
1.5 |
20 |
25 |
|
2R-300 |
300±20% |
750 |
850 |
1 |
1.5 |
20 |
25 |
|
2R-350 |
350±20% |
800 |
900 |
1 |
1.5 |
20 |
25 |
|
2R-420 |
420±20% |
900 |
1000 |
1 |
1.5 |
20 |
25 |
|
2R-470 |
470±20% |
900 |
1100 |
1 |
1.5 |
20 |
25 |
|
2R-600 |
600±20% |
1000 |
1200 |
1 |
1.5 |
20 |
25 |
|
2R-800 |
800±20% |
1400 |
1600 |
1 |
1.5 |
20 |
25 |
