Two-pole plug-in series
2R-5.5×6 Series description：

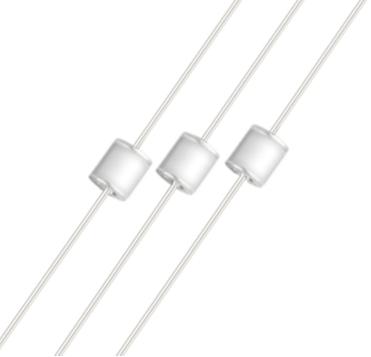

The two-pole plug-in 2R 5.5×6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for AC power port protection. Volume: 5.5×6.0mm, voltage range: 1000～5000V, 8/20μs waveform can withstand 2～5kA Surge energy.
Download
|
Part Number |
DC Spark-over Voltage(VBR) |
Impulse Spark-over Voltage |
Insulation Resistance |
Capacitance @1MHz |
Impulse Discharge Current @8/20μS |
||
|
100V/μS |
1KV/μS Max(V) |
Min(GΩ) |
Max(pF) |
Nominal ±5 times (KA) |
Max 1 time (KA) |
||
|
2R-1000 |
1000±20% |
1600 |
1800 |
1 |
1 |
5 |
10 |
|
2R-1200 |
1200±20% |
1800 |
2000 |
1 |
1 |
5 |
10 |
|
2R-1400 |
14000±20% |
2200 |
2400 |
1 |
1 |
5 |
10 |
|
2R-1500 |
1500±20% |
2300 |
2500 |
1 |
1 |
5 |
10 |
|
2R-1600 |
1600±20% |
2400 |
2600 |
1 |
1 |
5 |
10 |
|
2R-2000 |
2000±20% |
2800 |
3000 |
1 |
1 |
3 |
5 |
|
2R-2500 |
2500±20% |
3300 |
3500 |
1 |
1 |
3 |
5 |
|
2R-2700 |
2700±20% |
3400 |
3600 |
1 |
1 |
3 |
5 |
|
2R-3000 |
3000±20% |
3700 |
3900 |
1 |
1 |
3 |
5 |
|
2R-3500 |
35000±20% |
4300 |
4500 |
1 |
1 |
3 |
5 |
|
2R-3600 |
3600±20% |
4400 |
4600 |
1 |
1 |
3 |
5 |
|
2R-4000 |
4000±20% |
5000 |
5500 |
1 |
1 |
3 |
5 |
|
2R-4500 |
4500±20% |
5500 |
6000 |
1 |
1 |
2 |
5 |
|
2R-5000 |
5000±20% |
6000 |
6500 |
1 |
1 |
2 |
5 |
