: 3R-6×8-5KA

3R-6×8-5KA

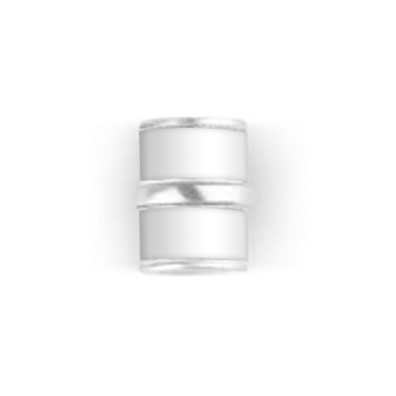

The three-pole patch 3R 6×8 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for automated PCB mounting production lines. There are different packages such as round electrodes, single square electrodes, and double-sided electrodes for users to choose freely. This series of products are mainly used in 5G communication base stations, high-frequency filters, switching power supplies, satellite antennas, automotive lighting, lightning protection devices, Gigabit and Fast Ethernet interfaces, 485 communication ports and other power and communication ports for surge protection. Volume: 6.0×8.0, voltage range: 70～800V, can withstand 5kA surge energy under 8/20μs waveform.; 3R-5×7.6 -5KA

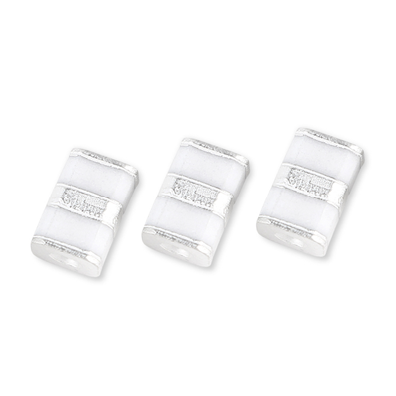

3R-5×7.6 -5KA

The three-pole patch 3R 5×7.6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for automated PCB mounting production lines. There are different packages such as round electrodes, single square electrodes, and double-sided electrodes for users to choose freely. This series of products are mainly used in 5G communication base stations, high-frequency filters, switching power supplies, satellite antennas, automotive lighting, lightning protection devices, Gigabit and Fast Ethernet interfaces, 485 communication ports and other power and communication ports for surge protection. Volume: 5.0×7.6 Voltage range: 75～800V, 8/20μs waveform can withstand 5kA surge energy.; 8×10-20KA(F)

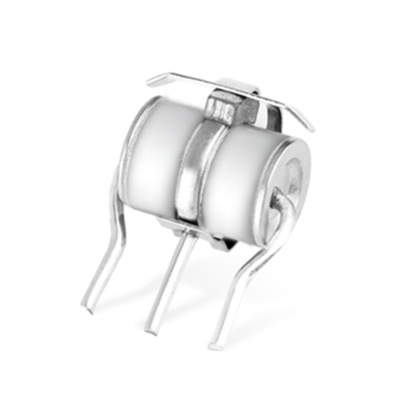

8×10-20KA(F)

The three-pole plug-in 3R 8×10 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for the protection of AC power ports and communication interfaces. Volume: 8.0×10mm, voltage range: 75～800V, 8/20μs waveform can withstand 20kA Surge energy.; SMD4532

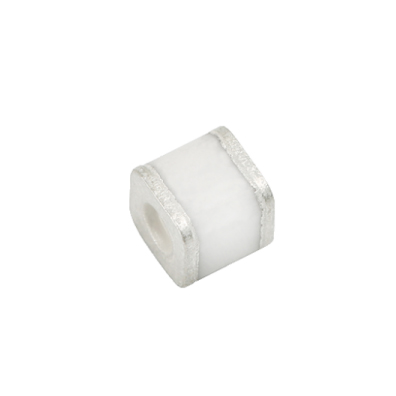

SMD4532

The two-pole SMD4532 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products has the characteristics of small size, low capacitance value and strong current flow capacity. Volume: 4.2×4.2×4.0mm, voltage range: 75～1000V,8/20μs waveform can withstand 3kA surge energy.; SMD3225

SMD3225

he two-pole SMD3225 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance value and strong current flow capacity. Volume: 3.2×2.5×2.5mm, voltage range: 75～800V, 8/20μs waveform can withstand 1kA surge energy.; 2R-8×6

2R-8×6

The two-pole SMD series, suitable for Coaxial, xDSL port, Internet port protection and surge protection of miniaturized ports. This series of products have the characteristics of small size, low capacitance, and strong flow capacity. The minimum size is 8.0×6.0mm. The product can withstand 0.5kA～20kA surge energy of 8/20μs waveform.; 2R-5.5×6

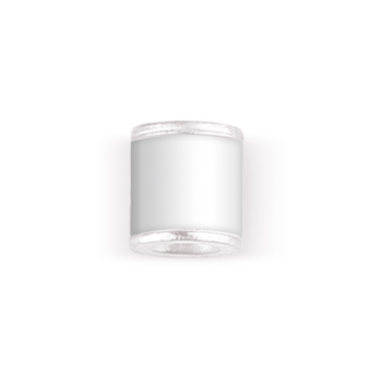

2R-5.5×6

The two-pole SMD 2R 5.5×6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial, xDSL port, Internet port protection and surge protection for miniaturized ports. This series of products have the characteristics of small size, low capacitance, and strong current flow capacity. Volume: 5.5×6.0mm, voltage range: 1000～5000V, 8/20μs waveform can withstand 2-5kA surge energy.; 2R-4.2×4

2R-4.2×4

The two-pole SMD series ceramic gas discharge tube produced by Hoverway Electronics is suitable for Coaxial and xDSL ports, Internet port protection and surge protection of miniaturized ports. This series of products have small size and low capacitance, Features of strong current capacity, volume: 4.2×4.2×4.0mm, voltage range: 75-800V, 8/20μs waveform can withstand 3kA surge impact.; 2R-8×6

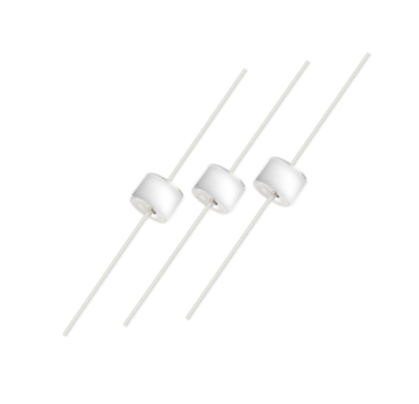

2R-8×6

The two-pole plug-in 2R 8×6 series ceramic gas discharge tube produced by Hoverway Electronics is suitable for AC power port protection. Volume: 8.0×6.0mm, voltage range: 1000～5000V, 8/20μs waveform can withstand 3～10kA Surge energy.
